PCTEL offers a range of high-performance omnidirectional antennas designed to support 5G FR1 frequencies, catering to various applications such as industrial IoT, smart cities, and broadband access. Below are detailed insights into two notable models:
1. MHO5GFR1 Series
2. BOA5G2X2L125PTNM

• Frequency Range: 617 MHz – 5,925 MHz (supports 5G FR1, LTE, and Wi-Fi)
• Peak Gain:
  • 617-640 MHz: 1.81 dBi
  • 640-896 MHz: 2.38 dBi
  • 896-960 MHz: 2.72 dBi
  • 1,710-2,700 MHz: 3.76 dBi
  • 3,300-4,200 MHz: 5.87 dBi
  • 4,900-5,925 MHz: 5.63 dBi
• VSWR (Voltage Standing Wave Ratio): 2.5 – 4.5 across different bands
• Polarization: Vertical
• Impedance: 50 ohms
• Maximum Power Handling: 25 watts
• Connector Type: N Female
• Dimensions:
  • Height: ~10.5 inches (266.7 mm)
  • Outer Diameter: 1.25 inches (31.75 mm)
• Weight: Approximately 0.32 kg (11.4 oz)
• Radome Material: White UV-resistant fiberglass
• Mounting: Direct-mount design with integral N Female connector
• Environmental Rating: IP67 (dustproof and water-resistant)

✅ Wide Frequency Support – Covers multiple bands from sub-1 GHz to nearly 6 GHz, ensuring compatibility with various wireless technologies.
✅ Compact and Durable – The rugged fiberglass radome protects against environmental factors, making it suitable for outdoor and harsh conditions.
✅ High Power Handling – Capable of supporting up to 25 watts, ensuring strong signal transmission.
✅ Efficient RF Performance – Optimized gain levels for enhanced signal reception and transmission.
✅ Easy Installation – Direct-mount design simplifies deployment, reducing setup time and maintenance needs.

🔹 Factory Automation – Ensures seamless wireless communication for industrial automation systems.
🔹 Retail and Security Failover – Provides reliable network connectivity for point-of-sale (POS) systems, security cameras, and backup networks.
🔹 Industrial IoT (IIoT) – Supports machine-to-machine (M2M) communication, telemetry, and remote monitoring.
🔹 Smart Cities – Ideal for urban infrastructure requiring wireless connectivity for traffic control, sensors, and surveillance.
🔹 Utilities – Facilitates communication for smart meters, grid monitoring, and remote asset management.

Conclusion

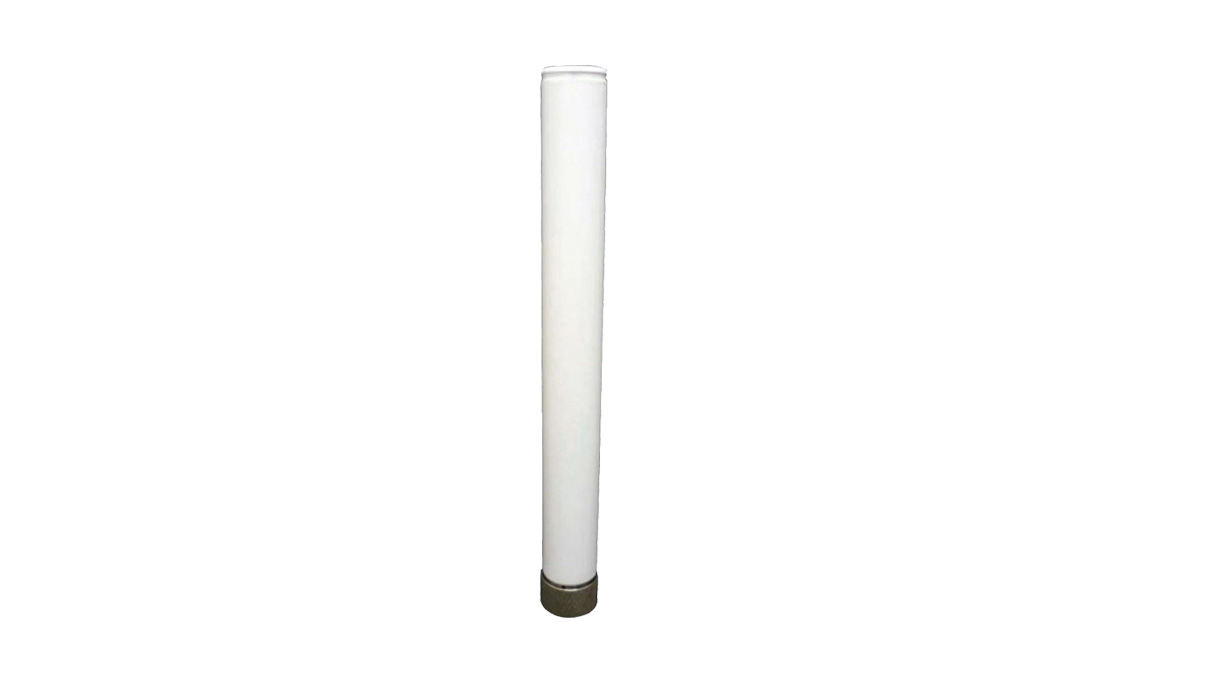

The MHO5GFR1NF is a versatile, high-performance 5G FR1 omnidirectional antenna that delivers reliable connectivity, broad frequency support, and rugged durability. Its compact, weather-resistant design makes it a valuable choice for industrial, commercial, and urban wireless applications.
