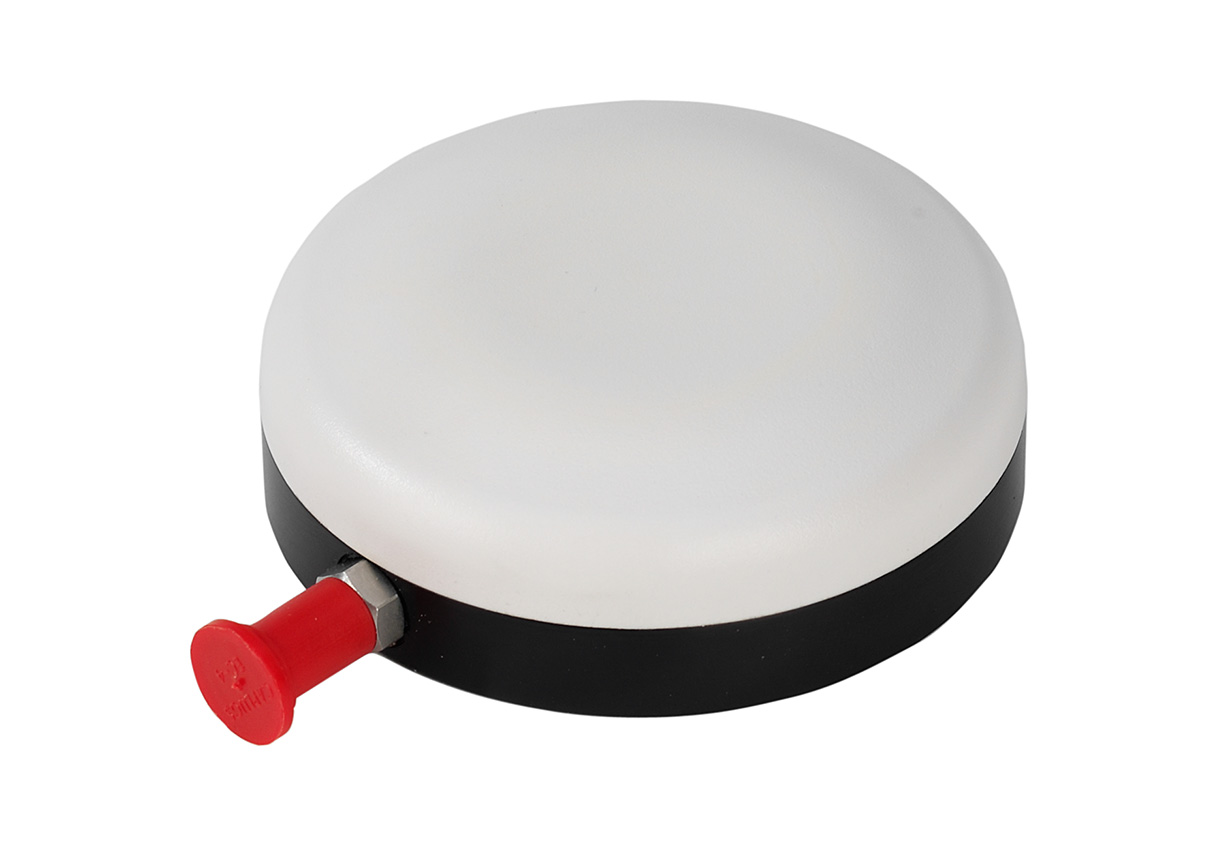

The PCTEL GPS Active, High Gain, High-Performance Magnetic Mount Antenna is a compact and powerful GNSS antenna designed for mobile and fixed applications requiring high-precision GPS reception. Featuring a strong magnetic base for secure mounting, this antenna is ideal for fleet management, asset tracking, vehicle navigation, and industrial applications.

This active GPS antenna is designed for high-accuracy positioning and navigation, offering:

✅ Active high-gain amplification – Ensures strong GPS signal reception.
✅ Magnetic mount for easy installation – Ideal for vehicles and temporary deployments.
✅ Weather-resistant housing – Supports outdoor use in harsh conditions.
✅ Low noise figure – Reduces signal interference for better accuracy.

• Supported GNSS System: GPS (L1: 1575.42 MHz)
• Antenna Type: Active GNSS antenna
• Gain: 26-40 dB (Active LNA)
• Noise Figure: ≤ 2.0 dB
• Polarization: Right-Hand Circular (RHCP)
• VSWR: ≤ 2.0:1
• Impedance: 50 Ohms
• Power Supply (LNA): 3.3V – 12V DC
• Current Consumption: ≤ 30 mA
• Connector Type: SMA, TNC, or N-Type (varies by model)
• Mounting Type: Magnetic base
• Cable Length: Typically 3-5 meters (customizable)
• Environmental Protection: IP67 (Waterproof & Dustproof)
• Operating Temperature: -40°C to +85°C
• Radome Material: UV-resistant polycarbonate
• Dimensions: Compact, lightweight design
• Weight: Approx. 100-200g

✅ High Gain for Strong GPS Reception: Ensures stable and accurate positioning in weak signal areas.
✅ Easy Installation with Magnetic Mount: Allows quick deployment on vehicles, equipment, and outdoor structures.
✅ Weatherproof & Rugged Design: IP67-rated, making it ideal for harsh outdoor environments.
✅ Low Power Consumption: Efficient operation with ≤ 30 mA power draw.
✅ Flexible Connectivity: Available with multiple connector options and cable lengths for different applications.

🔹 Fleet Management & Vehicle Tracking: Ensures accurate GPS positioning for trucks, taxis, and delivery fleets.
🔹 Emergency & Public Safety Vehicles: Supports police, fire, and ambulance GPS tracking systems.
🔹 Asset & Equipment Tracking: Provides real-time location tracking for industrial and commercial assets.
🔹 Drones & UAVs: Enhances GNSS navigation and control systems.
🔹 Temporary & Mobile GNSS Deployments: Ideal for research, field surveys, and mobile GPS applications.

Conclusion

The PCTEL GPS Active, High Gain, High-Performance Magnetic Mount Antenna is a versatile and durable solution for mobile and industrial GPS applications. With high-gain signal reception, a secure magnetic mount, and rugged IP67 construction, it is perfect for vehicle tracking, fleet management, emergency response, and field deployments.
