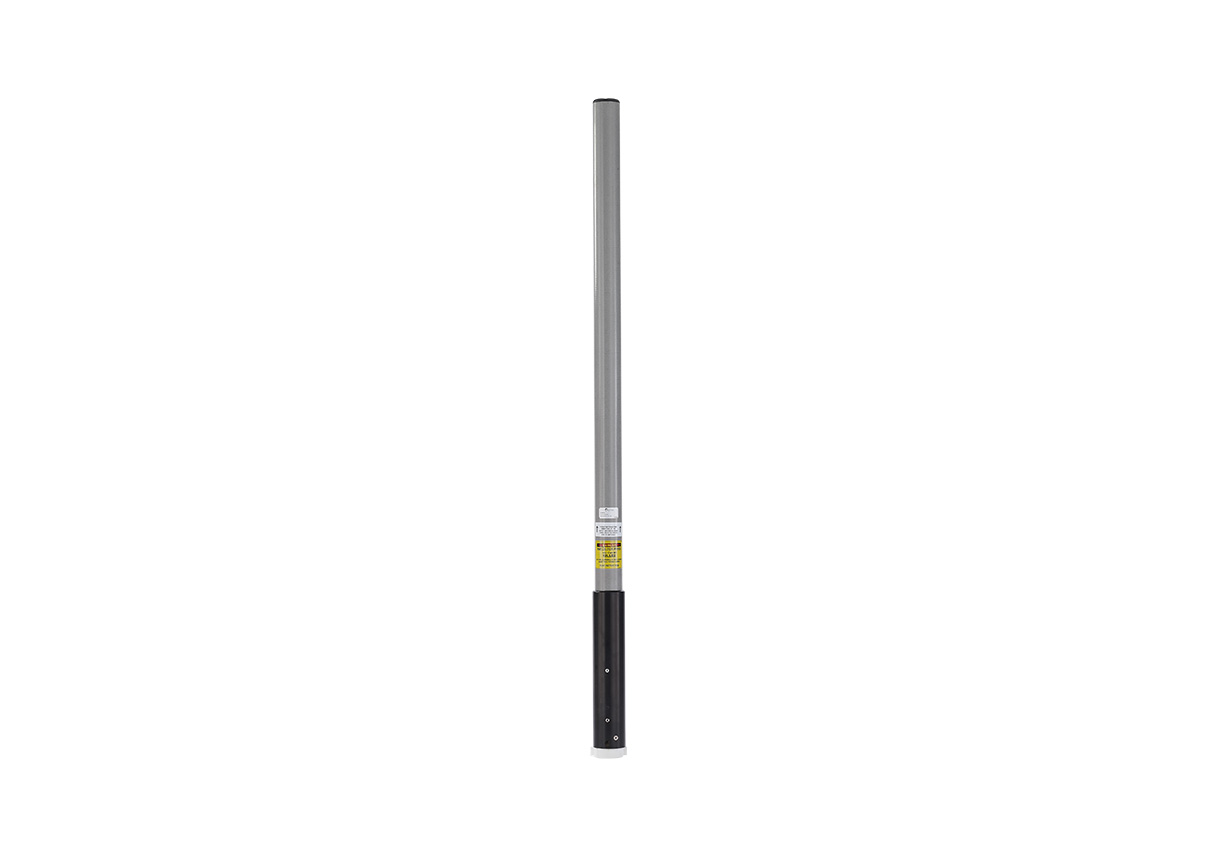

The Heavy-Duty Omnidirectional Base Station Antennas by PCTEL are high-performance, rugged antennas designed for fixed-site communication systems. These antennas provide 360-degree omnidirectional coverage, making them ideal for public safety, industrial wireless networks, and critical infrastructure applications.

This is a durable, high-gain base station antenna designed for long-range, omnidirectional RF coverage. It is typically installed on towers, poles, buildings, and other fixed structures to enable broad wireless connectivity across a specific frequency range. These antennas are built to withstand harsh weather conditions, high winds, and extreme temperatures, making them suitable for outdoor environments.

🔹 Frequency Range: Available in multiple bands, such as:

• VHF: 136-174 MHz
• UHF: 380-520 MHz
• 700-900 MHz (LTE, Public Safety)
• 2.4 GHz & 5 GHz (Wi-Fi, Industrial IoT, Wireless Broadband)

🔹 Gain:

• Typically ranges from 3 dBi to 9 dBi, depending on the model
• Higher gain models offer extended coverage and improved signal strength

🔹 Impedance: 50 ohms (industry standard for RF systems)

🔹 Polarization: Vertical (ensures optimal signal propagation)

🔹 Radiation Pattern: Omnidirectional (360-degree coverage for broad area communication)

🔹 VSWR (Voltage Standing Wave Ratio): ≤ 1.5:1 (ensures efficient power transfer with minimal signal loss)

🔹 Power Handling: Supports up to 200W (suitable for high-power transmissions)

🔹 Connector Type:

• Typically N-Type Female for secure and low-loss RF connections
• Some models may have UHF or SMA connectors

🔹 Material & Construction:

• Heavy-duty fiberglass radome for long-term durability
• Aluminum or stainless steel mounting hardware for corrosion resistance

🔹 Mounting Type:

• Designed for installation on masts, poles, and rooftops
• Compatible with U-bolts, clamps, and L-brackets

🔹 Wind Load Resistance: Up to 125 mph (200 km/h) (ideal for storm-prone areas)

🔹 Weatherproof Rating: IP67 or higher, ensuring protection against dust, water, and extreme conditions

🔹 Operating Temperature: -40°C to +85°C (suitable for extreme weather conditions)

✅ High Durability & Weather Resistance – Made from reinforced fiberglass with UV-resistant and corrosion-proof materials, these antennas withstand extreme environmental conditions.

✅ Omnidirectional Coverage – 360-degree signal propagation ensures consistent connectivity across large areas, reducing the need for multiple antennas.

✅ High Gain Options for Extended Range – Models with higher gain (up to 9 dBi) provide stronger signal transmission and reception over long distances.

✅ Wide Frequency Support – Available for VHF, UHF, 700-900 MHz, and Wi-Fi bands, making them versatile for various applications.

✅ Easy Installation & Compatibility – Standard N-Type connectors and universal mounting hardware make them compatible with most base station and repeater systems.

✅ Resistant to Wind & Mechanical Stress – Built to withstand high winds and vibration, ensuring reliable operation in harsh environments.

✅ Low VSWR for Efficient Signal Transmission – A low VSWR (≤ 1.5:1) minimizes power loss and maximizes signal efficiency.

📡 Public Safety Communications – Used by police, fire, and emergency services for reliable two-way radio coverage.

🏭 Industrial & Manufacturing Networks – Supports SCADA, telemetry, and IoT applications in industrial environments.

🚛 Fleet & Transportation Systems – Deployed for logistics, trucking, and railway communications to maintain continuous connectivity.

📶 Wireless Broadband & Wi-Fi Networks – Used for Wi-Fi hotspots, point-to-multipoint (PTMP) networks, and rural broadband.

🛡️ Military & Defense Applications – Provides secure and long-range communication for military bases, field operations, and surveillance.

🏗️ Construction & Oil/Gas Industry – Used in remote sites for worker communication, telemetry, and asset tracking.

🌲 Rural & Remote Communication – Enables long-distance radio coverage for farms, ranches, and remote communities.

Conclusion

The PCTEL Heavy-Duty Omnidirectional Base Station Antenna is a rugged, high-performance solution for fixed wireless applications that demand wide-area coverage, reliability, and durability. With strong weather resistance, high-gain options, and omnidirectional radiation, it is an ideal choice for public safety, industrial networks, transportation, and remote communication systems.
