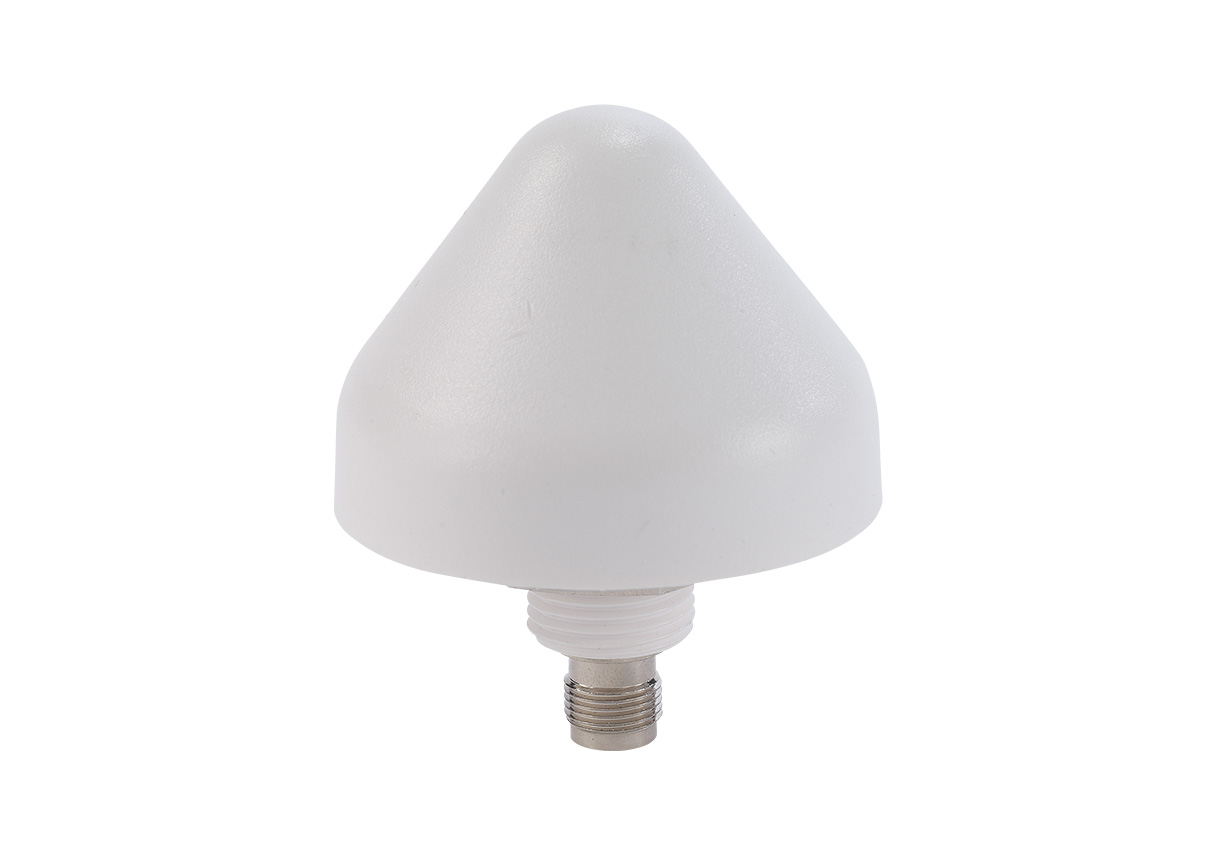

High Gain & High Rejection Permanent Mount GPS Antenna

SEND REQUEST

PRODUCT DESCRIPTION

The PCTEL High Gain & High Rejection Permanent Mount GPS Antenna is a rugged, high-performance GNSS antenna designed for precise positioning, navigation, and timing applications in telecommunications, transportation, military, and industrial environments. It features high gain for superior signal reception and advanced filtering for interference rejection, ensuring accurate and stable GPS signals even in challenging RF environments.

This high-gain, high-rejection GPS antenna is built for mission-critical applications requiring reliable and interference-free GNSS reception, offering:

✅ High-gain active GPS signal amplification – Ensures reliable reception in low-signal areas.
✅ Advanced interference rejection – Filters out unwanted RF noise for clean signal reception.
✅ Permanent mount design – Secure installation for long-term outdoor use.
✅ Rugged and weatherproof construction – Built to withstand extreme environmental conditions.
✅ Optimized for timing and positioning applications – Used in telecom, transportation, and defense industries.

Product details

Supported GNSS System: GPS (L1: 1575.42 MHz)
Antenna Type: Active GPS antenna with built-in high-rejection filter
Gain: 26-40 dB (Active LNA)
Noise Figure: ≤ 2.0 dB
Polarization: Right-Hand Circular (RHCP)
VSWR: ≤ 2.0:1
Impedance: 50 Ohms
Voltage Supply (LNA): 3.3V – 12V DC
Current Consumption: ≤ 30 mA
Connector Type: N-Type Female, TNC Female, or SMA (varies by model)
Mounting Type: Permanent mount (bolt-through or stud mount)
Environmental Protection: IP67 (Waterproof & Dustproof)
Operating Temperature: -40°C to +85°C
Radome Material: UV-resistant polycarbonate
Dimensions: Compact, low-profile design
Weight: Approx. 0.5 – 1 kg

Advantage

✅ High Gain for Strong GPS Reception: Ensures stable signal acquisition in urban and remote environments.
✅ Superior Out-of-Band Interference Rejection: Protects against RF noise from cellular networks, Wi-Fi, and radio transmitters.
✅ Permanent Mount for Secure Installation: Ideal for fixed installations on buildings, towers, and vehicles.
✅ Rugged & Weatherproof Design (IP67 Rated): Ensures long-term reliability in harsh outdoor conditions.
✅ Low Power Consumption: Operates efficiently with ≤ 30 mA power draw.
✅ Multiple Connector Options: Provides flexibility for integration into various systems.

Product Applications

🔹 Telecommunications & 5G Networks: Ensures accurate timing synchronization for cell towers and base stations.
🔹 Transportation & Fleet Management: Provides stable GPS signals for tracking commercial and emergency vehicles.
🔹 Military & Defense: Supports secure and interference-resistant GNSS applications in defense operations.
🔹 Smart Infrastructure & Power Grid Timing: Enables precise timing for SCADA and power grid synchronization.
🔹 Precision Agriculture & Construction: Ensures accurate GPS positioning for automated machinery.
🔹 Aerospace & Maritime Navigation: Provides high-reliability GPS signals for aviation and marine applications.

Conclusion

The PCTEL High Gain & High Rejection Permanent Mount GPS Antenna is a robust, high-precision GNSS antenna designed for demanding timing and positioning applications. With its high-gain active LNA, advanced interference filtering, and durable weatherproof design, it delivers unmatched performance for telecom, defense, transportation, and industrial sectors.
