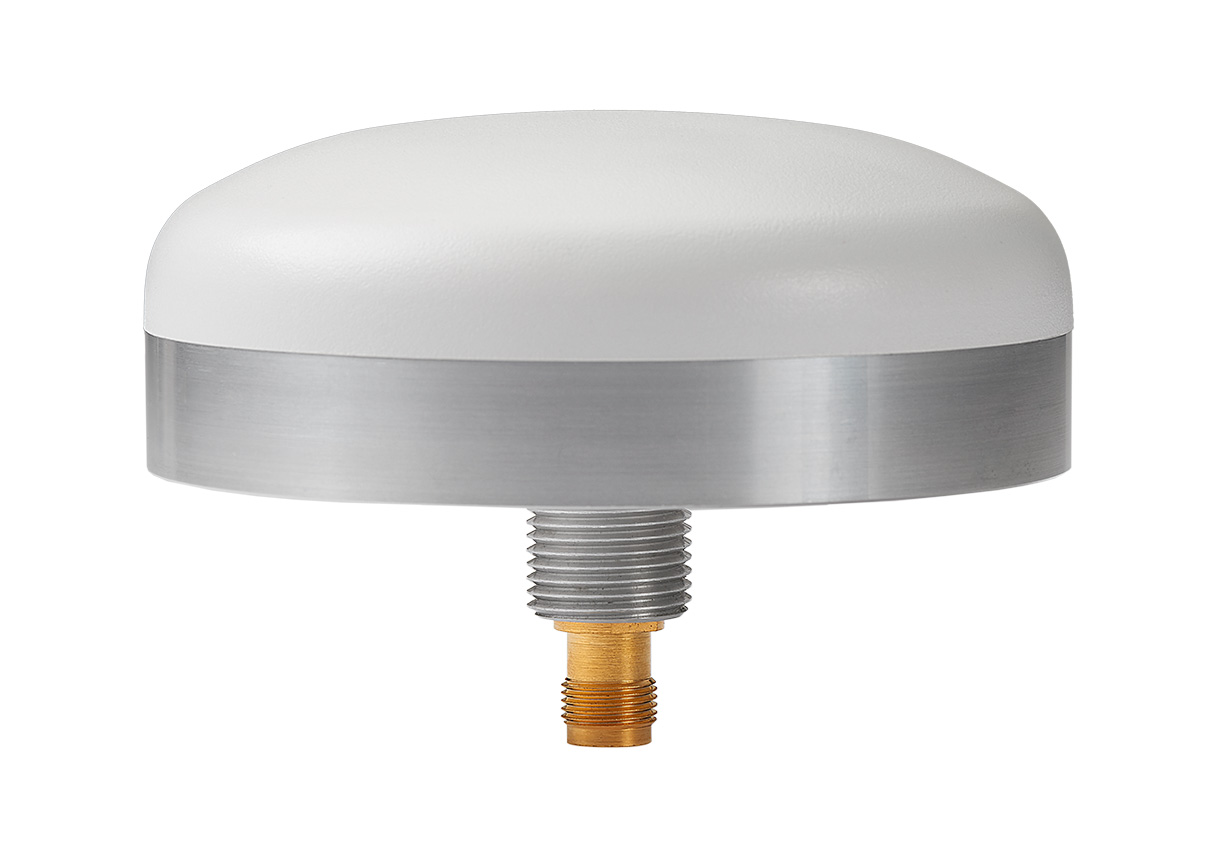

High Gain Multi-GNSS High Performance Precision Antenna
PRODUCT DESCRIPTION
The PCTEL High Gain Multi-GNSS High-Performance Precision Antenna is a rugged, multi-constellation GNSS antenna designed for high-precision positioning, navigation, and timing applications. It supports GPS, GLONASS, Galileo, and BeiDou satellite systems, ensuring superior accuracy, fast acquisition times, and enhanced reliability. With its high gain and low noise amplifier (LNA), it delivers strong signal reception even in challenging environments.
This multi-GNSS precision antenna is optimized for applications that require accurate positioning and timing, offering:
✅ Multi-constellation GNSS support (GPS, GLONASS, Galileo, BeiDou) – Ensures maximum satellite coverage for improved accuracy.
✅ High-gain active LNA – Enhances signal reception for precise location tracking.
✅ Advanced filtering for interference rejection – Minimizes impact from nearby RF sources.
✅ Weatherproof & durable housing – Built for harsh outdoor conditions.
✅ High-precision timing & positioning capabilities – Ideal for industrial, scientific, and military applications.
Product details
- Supported GNSS Systems:
- GPS (L1: 1575.42 MHz, L2, L5)
- GLONASS (L1: 1602 MHz, L2)
- Galileo (E1, E5a, E5b)
- BeiDou (B1, B2, B3)
- Antenna Type: Active multi-GNSS precision antenna
- Gain: 26-40 dB (Active LNA)
- LNA Noise Figure: ≤ 2.0 dB
- Polarization: Right-Hand Circular (RHCP)
- VSWR: ≤ 2.0:1
- Impedance: 50 Ohms
- Voltage Supply (LNA): 3.3V – 12V DC
- Current Consumption: ≤ 30 mA
- Connector Type: TNC, SMA, or N-Type (varies by model)
- Mounting Type: Pole, mast, or permanent mount
- Environmental Protection: IP67 (Waterproof & Dustproof)
- Operating Temperature: -40°C to +85°C
- Radome Material: UV-resistant polycarbonate
- Weight: Approx. 0.5 – 1 kg
Advantage
✅ Multi-Constellation GNSS Support: Works with GPS, GLONASS, Galileo, and BeiDou for enhanced accuracy.
✅ High Gain & Low Noise: Ensures strong satellite signal reception in dense urban areas or remote locations.
✅ Superior Out-of-Band Interference Rejection: Protects against RF noise from nearby transmitters.
✅ Rugged & Weatherproof (IP67 Rated): Designed for long-term outdoor deployment in extreme conditions.
✅ Optimized for Timing & Positioning: Ideal for critical applications requiring precise GNSS data.
Product Applications
🔹 Surveying & Geospatial Mapping: Ensures high-precision GNSS data collection for surveying and mapping.
🔹 Autonomous Vehicles & Robotics: Supports self-driving technologies with reliable GNSS positioning.
🔹 Military & Defense: Provides secure and interference-resistant GNSS signals for defense operations.
🔹 Telecommunications & 5G Networks: Ensures accurate timing synchronization for network operations.
🔹 Precision Agriculture & Machine Control: Improves GPS-guided farming equipment accuracy.
🔹 Scientific Research & Space Applications: Used in geospatial studies, aerospace navigation, and remote sensing.
Conclusion
The PCTEL High Gain Multi-GNSS High-Performance Precision Antenna is a top-tier GNSS solution for mission-critical applications requiring high-accuracy positioning and timing. With multi-constellation support, high gain, and advanced interference filtering, it is the ideal choice for surveying, autonomous systems, telecommunications, and military operations.
