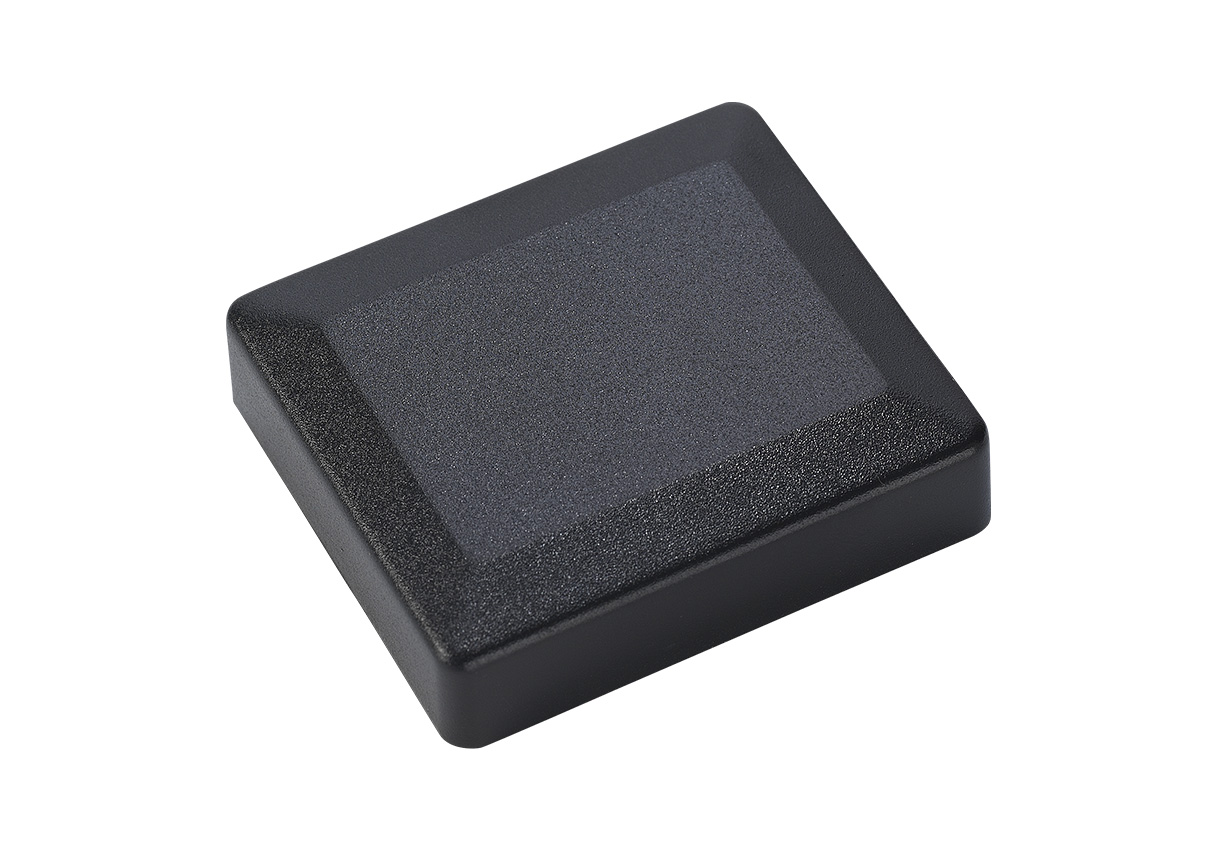

High Rejection GPS Magnetic Mount Series
PRODUCT DESCRIPTION
The PCTEL High Rejection GPS Magnetic Mount Series consists of high-performance GPS antennas designed for accurate positioning, navigation, and timing applications. These antennas feature advanced filtering technology to minimize RF interference from nearby signals, ensuring clean and strong GPS reception. The magnetic mount design allows for easy installation on vehicles, equipment, and mobile assets, making them ideal for fleet management, transportation, defense, and industrial applications.
This high-rejection GPS antenna series is engineered to deliver superior performance in environments with high RF interference, offering:
✅ Advanced out-of-band filtering – Blocks interference from cellular, Wi-Fi, and radio signals.
✅ High-gain active LNA – Enhances weak signal reception for accurate positioning.
✅ Strong magnetic mount – Allows for quick, secure, and non-permanent installation.
✅ Durable, weatherproof housing – Ensures reliable operation in extreme conditions.
✅ Optimized for GPS timing & positioning – Used in telecom, fleet tracking, military, and industrial automation.
Product details
- Supported GNSS System: GPS (L1: 1575.42 MHz)
- Antenna Type: Active GPS antenna with high-rejection filtering
- Gain: 26-40 dB (Active LNA)
- Noise Figure: ≤ 2.0 dB
- Polarization: Right-Hand Circular (RHCP)
- VSWR: ≤ 2.0:1
- Impedance: 50 Ohms
- Voltage Supply (LNA): 3.3V – 12V DC
- Current Consumption: ≤ 30 mA
- Connector Type: SMA, TNC, or N-Type (varies by model)
- Mounting Type: Magnetic mount for quick installation
- Environmental Protection: IP67 (Waterproof & Dustproof)
- Operating Temperature: -40°C to +85°C
- Radome Material: UV-resistant polycarbonate
- Cable Length: Typically 5m (customizable based on application)
- Weight: Lightweight and compact
Advantage
✅ Superior Out-of-Band Interference Rejection: Filters out RF noise from nearby electronic devices and networks.
✅ Strong Magnetic Mount: Ensures secure attachment to metal surfaces without permanent installation.
✅ High Gain for Reliable GPS Reception: Maintains strong signals even in weak-signal environments.
✅ Weatherproof & Rugged (IP67 Rated): Designed for outdoor and mobile applications.
✅ Quick & Easy Deployment: No need for drilling or permanent mounting—ideal for temporary installations.
Product Applications
🔹 Fleet Management & Vehicle Tracking: Provides accurate GPS data for commercial and emergency vehicles.
🔹 Military & Defense: Ensures secure and interference-resistant GPS signals for tactical operations.
🔹 Telecommunications & 5G Timing: Synchronizes timing signals for network infrastructure.
🔹 Industrial Automation & Remote Monitoring: Supports GPS-based control systems in industrial settings.
🔹 Surveying & Mapping: Assists in precise positioning for mobile surveying units.
🔹 Maritime & Aviation Navigation: Delivers high-reliability GPS signals for ships and aircraft.
Conclusion
The PCTEL High Rejection GPS Magnetic Mount Series is a versatile, high-performance GNSS antenna solution designed for mobile and fixed applications requiring interference-free GPS reception. With its advanced filtering, high-gain LNA, and rugged magnetic mount design, it is perfect for fleet tracking, defense, telecommunications, and industrial automation.
