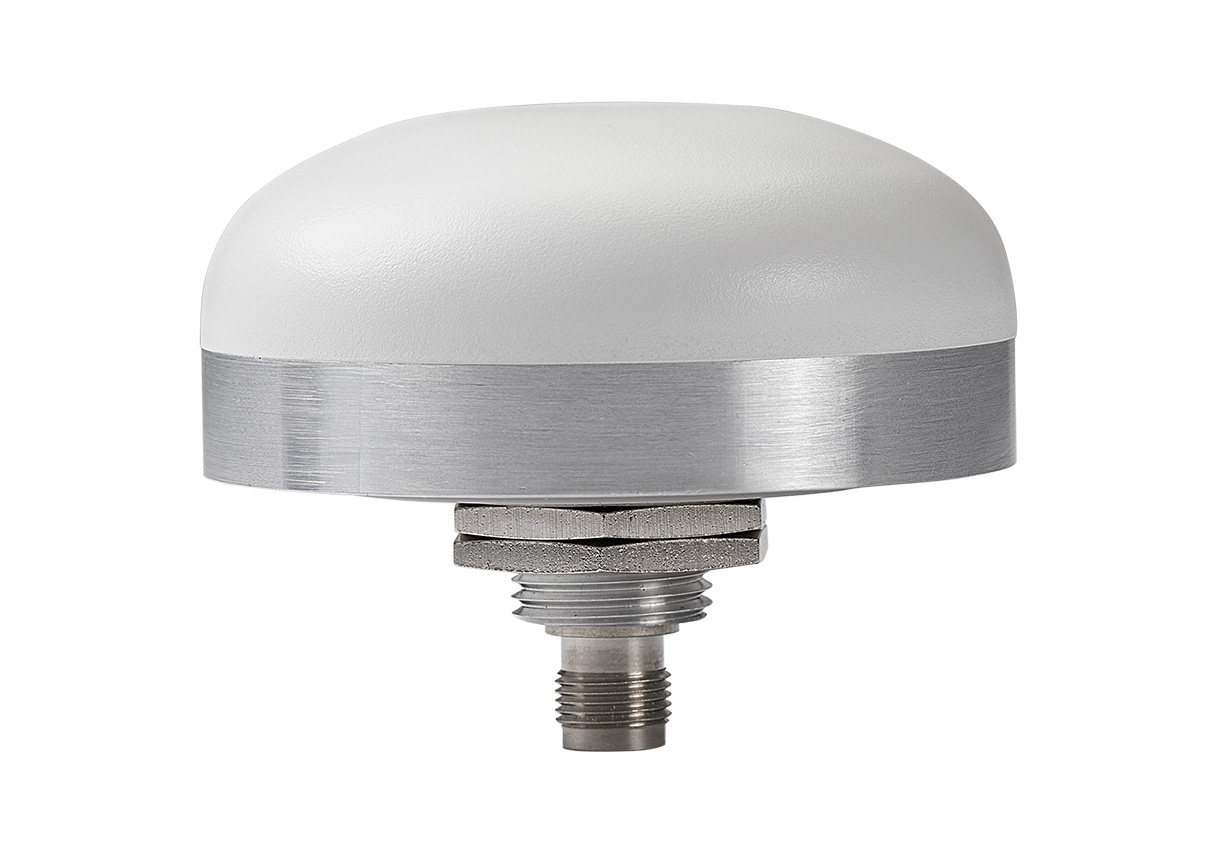

Multi-GNSS Precision Antenna
PRODUCT DESCRIPTION
The PCTEL Multi-GNSS Precision Antenna is a high-performance, multi-constellation GNSS antenna designed for accurate positioning, navigation, and timing applications. It supports multiple satellite systems, including GPS, GLONASS, Galileo, and BeiDou, ensuring enhanced accuracy, fast signal acquisition, and strong reception even in challenging environments. Engineered for precision applications, this antenna features high gain, low noise amplification, and superior out-of-band interference rejection.
This multi-GNSS precision antenna provides high-accuracy positioning and reliable GNSS signal reception for demanding applications, featuring:
✅ Multi-constellation GNSS support (GPS, GLONASS, Galileo, BeiDou) – Ensures maximum satellite coverage.
✅ High-gain active LNA (Low Noise Amplifier) – Enhances signal strength for improved positioning accuracy.
✅ Advanced interference filtering – Minimizes RF noise from nearby transmitters.
✅ Durable, weatherproof design (IP67 rated) – Built for long-term outdoor deployment.
✅ Optimized for precision timing & positioning – Ideal for surveying, military, telecom, and industrial applications.
Product details
- Supported GNSS Systems:
- GPS (L1, L2, L5: 1575.42 MHz, 1227.60 MHz, 1176.45 MHz)
- GLONASS (L1, L2: 1602 MHz, 1246 MHz)
- Galileo (E1, E5a, E5b: 1575.42 MHz, 1176.45 MHz, 1207.14 MHz)
- BeiDou (B1, B2, B3: 1561.10 MHz, 1207.14 MHz, 1268.52 MHz)
- Antenna Type: Active multi-GNSS precision antenna
- Gain: 26-40 dB (Active LNA)
- Noise Figure: ≤ 2.0 dB
- Polarization: Right-Hand Circular (RHCP)
- VSWR: ≤ 2.0:1
- Impedance: 50 Ohms
- Voltage Supply (LNA): 3.3V – 12V DC
- Current Consumption: ≤ 30 mA
- Connector Type: SMA, TNC, or N-Type (varies by model)
- Mounting Type: Pole, mast, or permanent mount
- Environmental Protection: IP67 (Waterproof & Dustproof)
- Operating Temperature: -40°C to +85°C
- Radome Material: UV-resistant polycarbonate
- Weight: Approx. 0.5 – 1 kg
Advantage
✅ Multi-Constellation GNSS Support: Works with GPS, GLONASS, Galileo, and BeiDou for enhanced positioning accuracy.
✅ High Gain & Low Noise Amplifier (LNA): Ensures strong GNSS signal reception in dense urban areas or remote locations.
✅ Superior Interference Rejection: Filters out RF noise from cellular, radio, and other nearby transmitters.
✅ Rugged & Weatherproof (IP67 Rated): Built for harsh environmental conditions.
✅ Optimized for Precision Applications: Designed for mission-critical timing and positioning tasks.
Product Applications
🔹 Surveying & Geospatial Mapping: Provides high-precision GNSS data for land surveying and mapping.
🔹 Autonomous Vehicles & Robotics: Supports self-driving technologies and robotic navigation.
🔹 Military & Defense: Ensures secure and interference-resistant GNSS positioning.
🔹 Telecommunications & 5G Networks: Enables accurate timing synchronization for network infrastructure.
🔹 Precision Agriculture & Construction: Improves GPS-guided equipment accuracy for farming and heavy machinery.
🔹 Scientific Research & Space Applications: Used in geospatial studies, aerospace navigation, and environmental monitoring.
Conclusion
The PCTEL Multi-GNSS Precision Antenna is a top-tier GNSS solution for applications requiring high-accuracy positioning, reliable signal reception, and superior interference rejection. Its multi-constellation support, high-gain LNA, and rugged design make it ideal for surveying, autonomous systems, military operations, telecom networks, and industrial automation.
