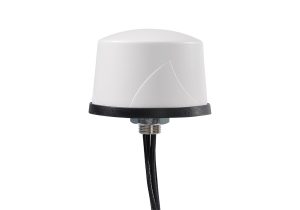

Multiband Combination Mobile Antenna
PRODUCT DESCRIPTION
- The Multiband Combination Mobile Antenna from PCTEL is a high-performance, multi-functional antenna designed for vehicular and mobile applications requiring reliable communication across multiple frequency bands.
- It integrates support for cellular (5G/LTE), Wi-Fi, GPS/GNSS, and sometimes UHF/VHF bands, making it ideal for public safety, fleet management, industrial IoT, and smart transportation systems.
- The antenna is built with a low-profile, rugged enclosure, ensuring durability in harsh environmental conditions while maintaining optimal wireless performance.
Product details
- Frequency Bands:
- 5G/LTE Bands: 617-960 MHz, 1710-2700 MHz, 3300-5000 MHz
- Wi-Fi Bands: 2.4 GHz and 5 GHz (802.11ac/ax support)
- GNSS (GPS, GLONASS, Galileo, BeiDou): 1575.42 MHz (GPS L1), 1602 MHz (GLONASS L1)
- UHF/VHF Support (select models): 136-174 MHz, 380-520 MHz for public safety and two-way radio communication
- MIMO Technology:
- Supports 2×2, 3×3, or 4×4 MIMO for faster data transmission and enhanced signal reliability.
- Gain:
- 5G/LTE: 3-5 dBi
- Wi-Fi: 5-7 dBi
- GNSS: 28 dB active gain with low-noise amplifier (LNA)
- Polarization: Vertical for optimized signal reception.
- VSWR (Voltage Standing Wave Ratio): ≤ 2.0:1, ensuring efficient signal transmission with minimal loss.
- Connector Types:
- Variety of RF connectors, including SMA, TNC, or N-Type, depending on the configuration.
- Mounting Method:
- Permanent screw-mount for secure installation on vehicles and mobile equipment.
- Optional magnetic mount for temporary deployments.
- Enclosure Material: UV-resistant, impact-resistant plastic to withstand extreme conditions.
- Ingress Protection: Rated IP67/IP69, ensuring waterproof and dustproof protection.
- Operating Temperature: -40°C to +85°C, allowing operation in harsh environments.
Advantage
- All-in-One Multiband Connectivity:
- Combines 5G/LTE, Wi-Fi, GNSS, and UHF/VHF into a single, compact antenna, eliminating the need for multiple antennas.
- MIMO Technology for Faster Speeds:
- Supports high-performance MIMO configurations, increasing network capacity and reducing interference.
- High-Precision GNSS with Low-Noise Amplifier:
- Provides accurate positioning and reliable GPS tracking for fleet and vehicle applications.
- Rugged & Weatherproof Design:
- IP67/IP69-rated enclosure ensures long-term durability in outdoor and mobile environments.
- Optimized for Mobile Use:
- Designed for high-speed vehicles, maintaining strong connectivity even in motion.
- Flexible Mounting Options:
- Permanent and temporary mounting choices allow for both fixed installations and rapid deployment needs.
Product Applications
- All-in-One Multiband Connectivity:
- Combines 5G/LTE, Wi-Fi, GNSS, and UHF/VHF into a single, compact antenna, eliminating the need for multiple antennas.
- MIMO Technology for Faster Speeds:
- Supports high-performance MIMO configurations, increasing network capacity and reducing interference.
- High-Precision GNSS with Low-Noise Amplifier:
- Provides accurate positioning and reliable GPS tracking for fleet and vehicle applications.
- Rugged & Weatherproof Design:
- IP67/IP69-rated enclosure ensures long-term durability in outdoor and mobile environments.
- Optimized for Mobile Use:
- Designed for high-speed vehicles, maintaining strong connectivity even in motion.
- Flexible Mounting Options:
- Permanent and temporary mounting choices allow for both fixed installations and rapid deployment needs.
