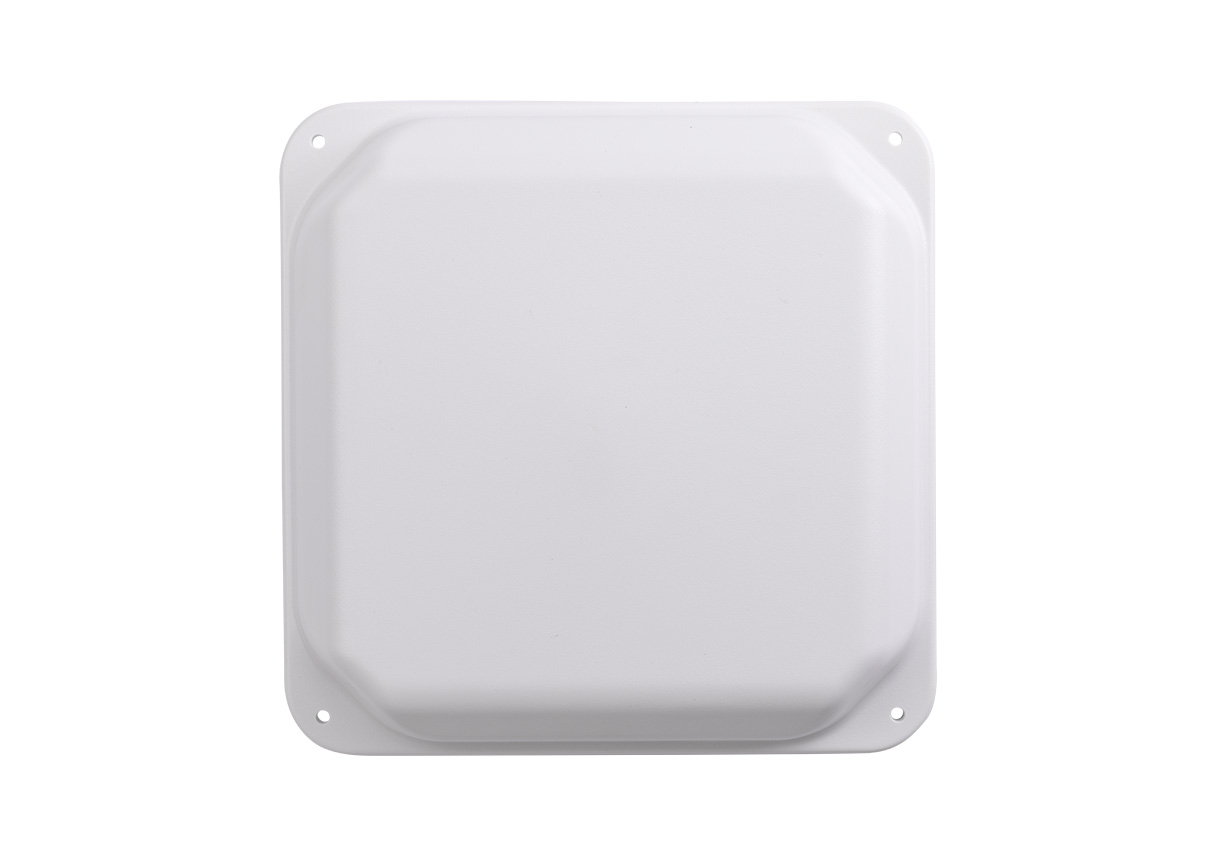

The PCTEL VenU® Dual-Band WiFi Panel Antennas are high-performance directional antennas designed for WiFi 6E, WiFi 7, and broadband wireless applications. These antennas operate in both 2.4 GHz and 5/6 GHz bands, providing reliable, high-speed connectivity for indoor and outdoor networks.

With their panel-style, flat design and optimized radiation pattern, they are ideal for targeted wireless coverage in enterprise, industrial, and public broadband environments.

📡 Frequency Bands:

• 2.4 GHz WiFi / ISM: 2400 – 2500 MHz
• 5 GHz WiFi / ISM: 5150 – 5925 MHz
• 6 GHz WiFi 6E / WiFi 7: 5925 – 7125 MHz

📈 Gain:

• Typically 8 dBi to 14 dBi, depending on the frequency band and model.

📶 Radiation Pattern:

• Directional coverage, optimized for focused signal distribution.
• Provides enhanced signal penetration and reduced interference.

⚡ MIMO Configuration (Depending on the Model):

• 2-Port, 4-Port, or 6-Port MIMO support for higher data rates and multi-user performance.

📊 Polarization:

• Dual polarization (Vertical & Horizontal) for improved signal integrity and minimized interference.

🔌 Connector Type:

• N-Type, RP-SMA, or 4.3-10 connectors, depending on the model.

📏 Design & Mounting Options:

• Wall-mount or pole-mount installation for flexible deployment.
• Compact, flat panel design with a low-profile aesthetic.

🛡️ Durability & Environmental Protection:

• IP67-rated, fully waterproof and dustproof.
• Rugged radome for impact and UV resistance.

🌡️ Operating Temperature:

• -40°C to +85°C, suitable for extreme weather conditions.

✅ High-Gain, Targeted Wireless Coverage

• Directional beam enhances coverage and signal strength.
• Ideal for enterprise and industrial WiFi deployments.

✅ Dual-Band Support for Maximum Flexibility

• Supports simultaneous operation in 2.4 GHz and 5/6 GHz.
• Optimized for WiFi 6E and WiFi 7, ensuring high-speed, low-latency performance.

✅ MIMO Technology for Enhanced Performance

• Multi-port MIMO support increases network efficiency and reliability.
• Ideal for multi-user environments with high data demands.

✅ Rugged & Weatherproof for Indoor & Outdoor Use

• IP67-rated construction ensures long-term durability in harsh environments.
• UV-resistant materials protect against sun and extreme weather conditions.

🏢 Enterprise & Industrial Wireless Networks

• Provides enhanced wireless connectivity for large office spaces and warehouses.
• Supports industrial IoT (IIoT) applications, automation, and real-time data exchange.

🏙️ Public WiFi & Smart Cities

• Expands WiFi coverage in stadiums, transportation hubs, and public areas.
• Enables seamless connectivity for high-traffic locations.

📡 Wireless ISP (WISP) & Fixed Wireless Access (FWA)

• Ideal for broadband providers delivering high-speed internet in large areas.
• Supports efficient, point-to-multipoint connections for residential and commercial users.

🚆 Transportation & Infrastructure Networks

• Enhances wireless connectivity in airports, train stations, and highways.
• Supports intelligent transportation systems (ITS) and security monitoring.

Conclusion

The PCTEL VenU® Dual-Band WiFi Panel Antennas are high-performance, durable, and optimized for directional WiFi coverage. With dual-band operation, MIMO support, and a rugged design, they are an excellent choice for enterprise, industrial, public broadband, and WISP applications.
