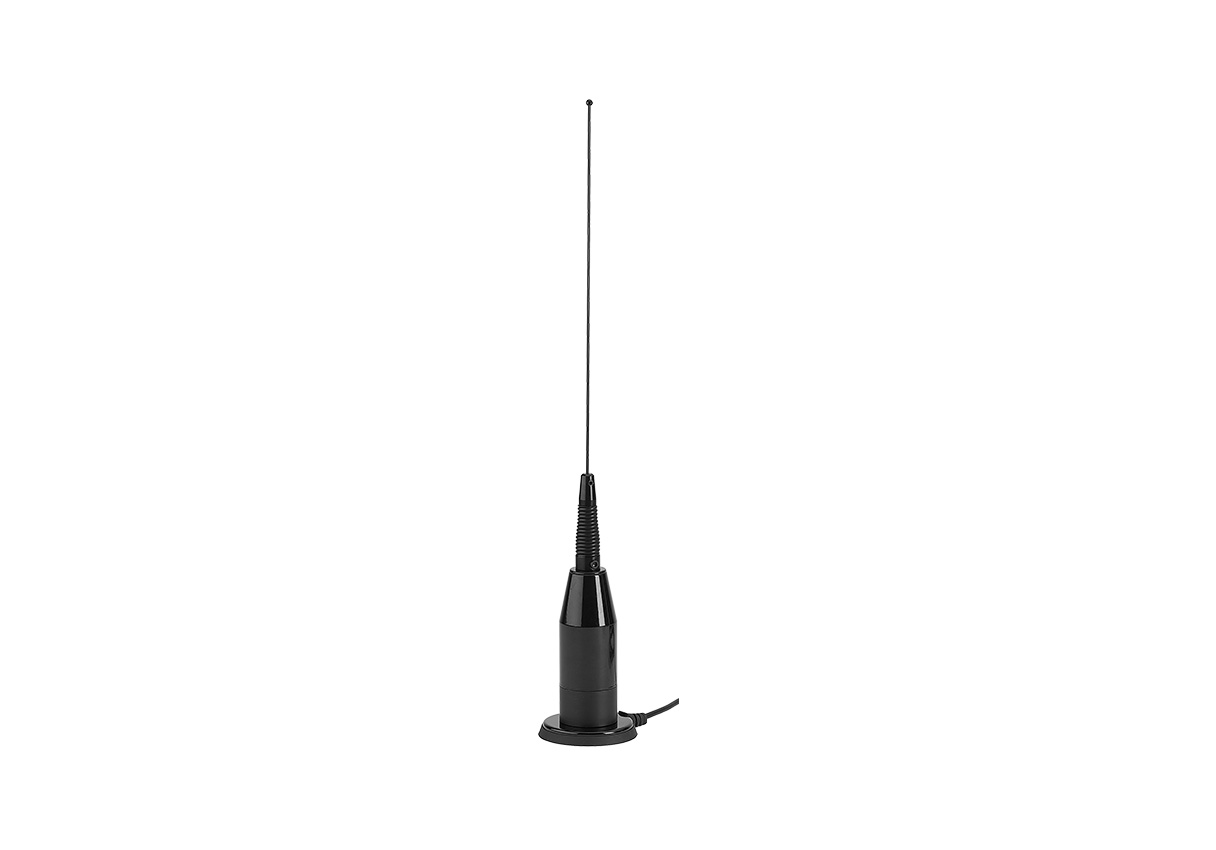

Wide Spectrum Multiband Antenna
PRODUCT DESCRIPTION
The PCTEL Wide Spectrum Multiband Antenna is a high-performance, multi-frequency antenna designed to provide seamless connectivity across various wireless communication systems. It is ideal for applications requiring reliable, high-gain coverage across multiple bands, including VHF, UHF, LTE, 5G, Wi-Fi, GPS, and IoT networks.
This is a versatile, omnidirectional or directional antenna that supports multiple frequency bands within a single unit. It is commonly used in public safety, fleet management, industrial automation, military, and IoT applications, where reliable communication across various networks is required.
The wide-spectrum capability makes it ideal for mission-critical applications that demand robust signal performance, high efficiency, and flexible mounting options.
Product details
🔹 Frequency Range:
- VHF: 136-174 MHz
- UHF: 380-520 MHz
- LTE/5G: 600-2700 MHz
- Wi-Fi: 2.4 GHz & 5 GHz
- GPS/GNSS: 1575 MHz (L1) & 1227 MHz (L2)
🔹 Antenna Type:
- Omnidirectional (360-degree coverage) or Directional (focused beam) depending on the model
- Multiband and broadband design for multiple networks
🔹 Gain: 0 dBi to 6 dBi, depending on the band and model
🔹 Impedance: 50 ohms (standard for RF communication)
🔹 Polarization: Vertical or Circular, depending on the model
🔹 Radiation Pattern: Omnidirectional (for uniform coverage) or Directional (for focused signal transmission)
🔹 VSWR (Voltage Standing Wave Ratio): ≤ 2:1, ensuring efficient signal transmission
🔹 Power Handling: Up to 100W, suitable for high-power communication systems
🔹 Connector Type: SMA, TNC, N-Type, or FAKRA, depending on the model
🔹 Material & Durability:
- Heavy-duty radome for outdoor durability
- UV-resistant, weatherproof, and impact-resistant design
- Vibration-resistant for mobile and industrial applications
🔹 Mounting Options:
- Magnet Mount (for vehicles and temporary setups)
- Permanent Roof Mount (NMO or screw-in for secure installation)
- Pole or Wall Mount (for fixed-site applications)
Advantage
✅ Wideband Coverage – Supports multiple frequency bands in a single unit, eliminating the need for multiple antennas.
✅ High-Efficiency RF Performance – Low VSWR ensures stronger signal clarity and minimal power loss.
✅ Flexible Design Options – Available in omnidirectional or directional configurations, allowing customized deployments.
✅ Rugged & Weatherproof Construction – Designed for outdoor use, capable of withstanding harsh weather, shock, and vibrations.
✅ Compact and Low-Profile – Lightweight and sleek design makes it suitable for vehicles, base stations, and IoT devices.
✅ Multiple Mounting Options – Can be used on vehicles, buildings, and poles, providing installation flexibility.
✅ Ideal for Public Safety & Critical Networks – Ensures seamless connectivity for emergency response teams, industrial automation, and fleet tracking.
Product Applications
🚓 Public Safety & Emergency Response – Used in police cars, fire trucks, ambulances, and disaster response teams for reliable connectivity.
🚛 Fleet & Transportation – Provides seamless communication for trucks, buses, taxis, and logistics vehicles.
🏭 Industrial & Manufacturing – Supports SCADA, telemetry, and industrial automation in factories and smart grid systems.
📡 Fixed-Site Communication – Ideal for base stations, telemetry, and remote monitoring networks.
🚢 Marine & Military Applications – Weatherproof and rugged, making it ideal for naval and tactical operations.
🌍 IoT & Smart Infrastructure – Used in smart cities, wireless sensor networks, and 5G/LTE applications.
Conclusion
The PCTEL Wide Spectrum Multiband Antenna is a highly versatile, durable, and efficient antenna that supports multiple wireless technologies. Its broad frequency coverage, robust construction, and flexible mounting options make it an excellent choice for mission-critical applications such as public safety, industrial automation, transportation, and IoT deployments. 🚀📡
